Medical refrigerators and freezers
Our cold chain products ensure safe and reliable cooling for pharmaceutical goods. Technical components like micro-channel condensers, a top cooling system or smart-inverter compressors support maintaining drug safety, complying with refrigeration regulations and optimizing operational efficiency. The refrigerators and freezers offer an optimal solution for storing vaccines, medicines and other sensitive products.
- Choose from different models depending on your needs: refrigerators with a temperature range of 2°C to 8°C, biomedical freezers with temperatures down to -25°C or -40°C, and ULT freezers with temperatures as low as -86°C.
- The temperature control technology guarantees precise regulation, crucial for maintaining medication efficacy. Advanced systems ensure uniform temperatures throughout, minimizing the risk of medication degradation.
- Alarm systems promptly alert staff to temperature deviations or power outages, ensuring swift intervention.
- Remote monitoring and control features enable pharmacy staff to stay informed and take immediate action from anywhere.
Different models for different occasions

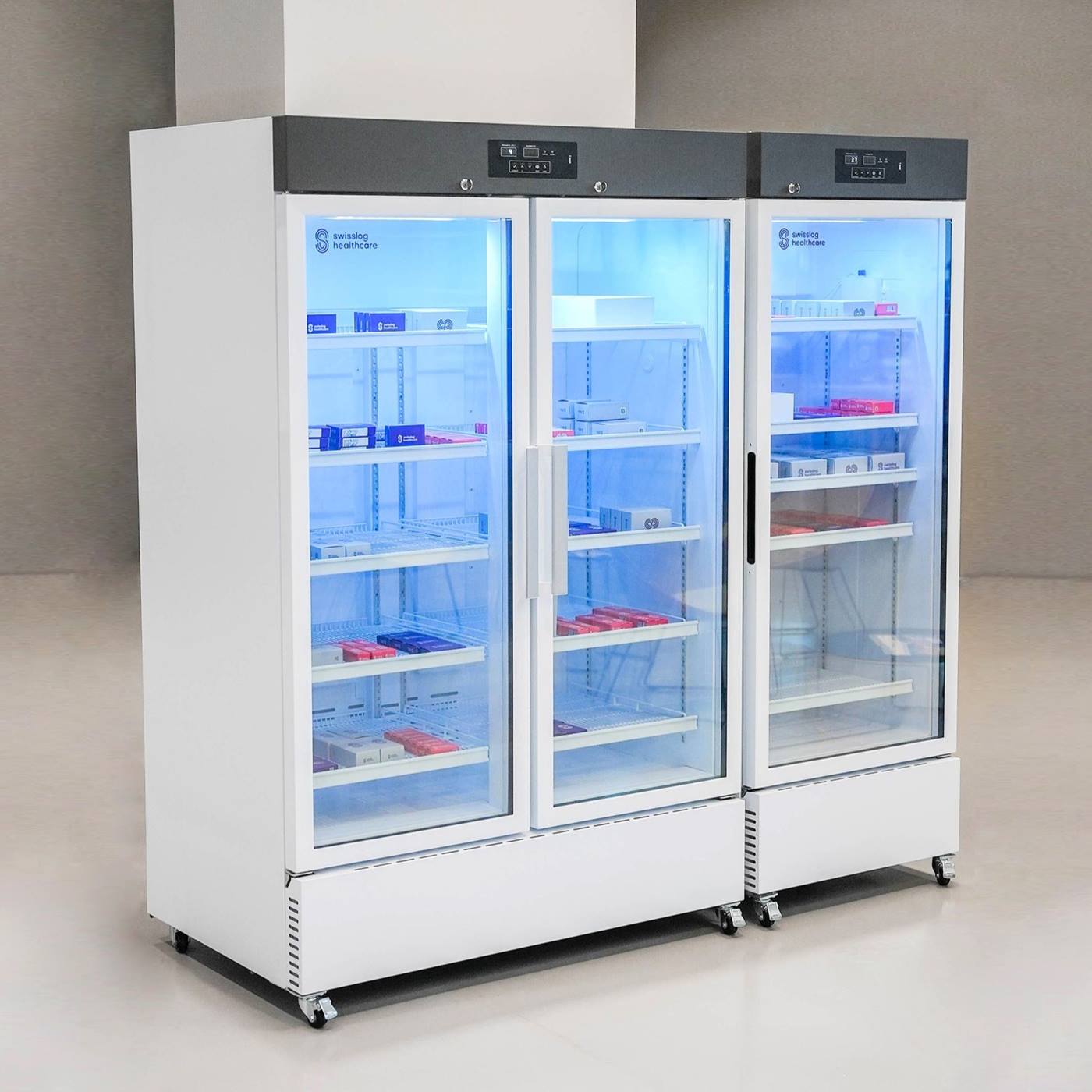

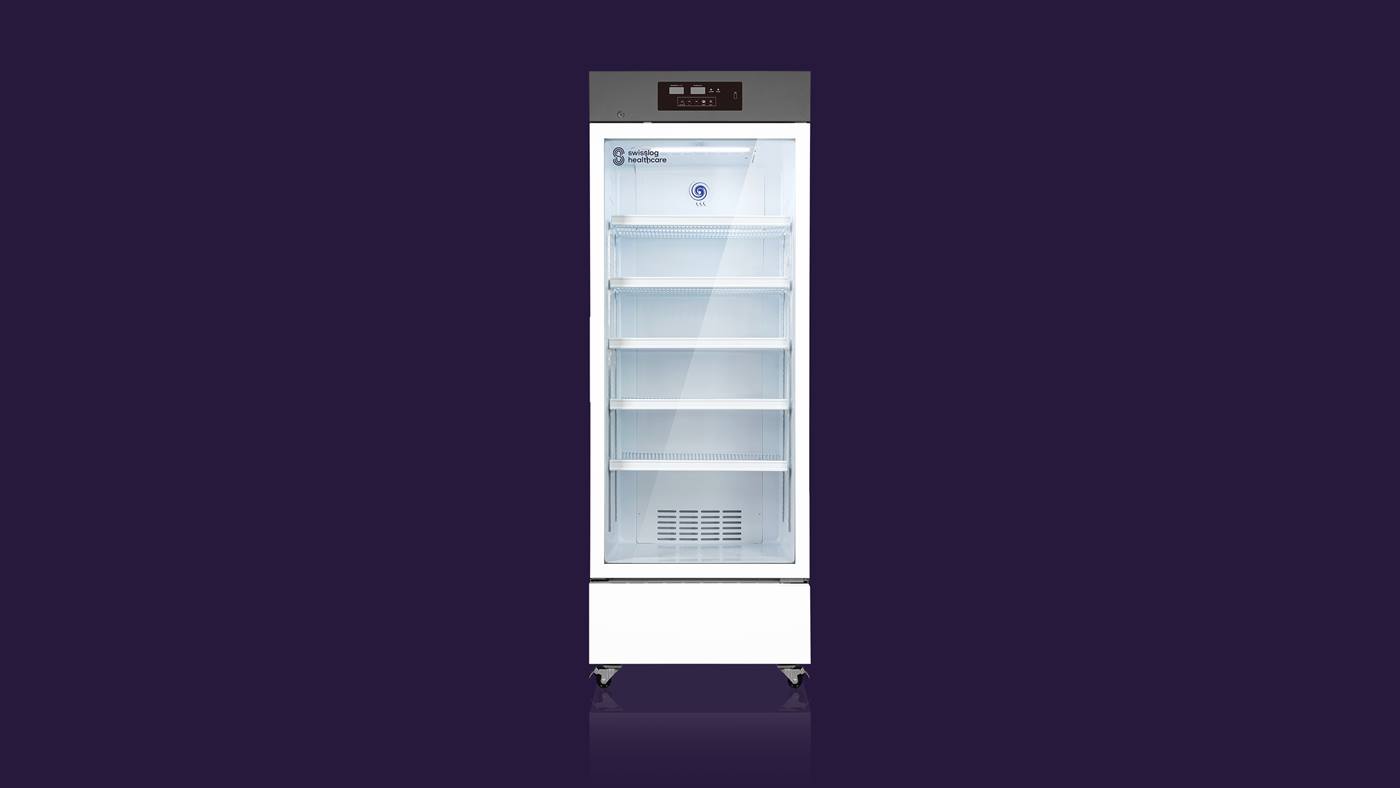

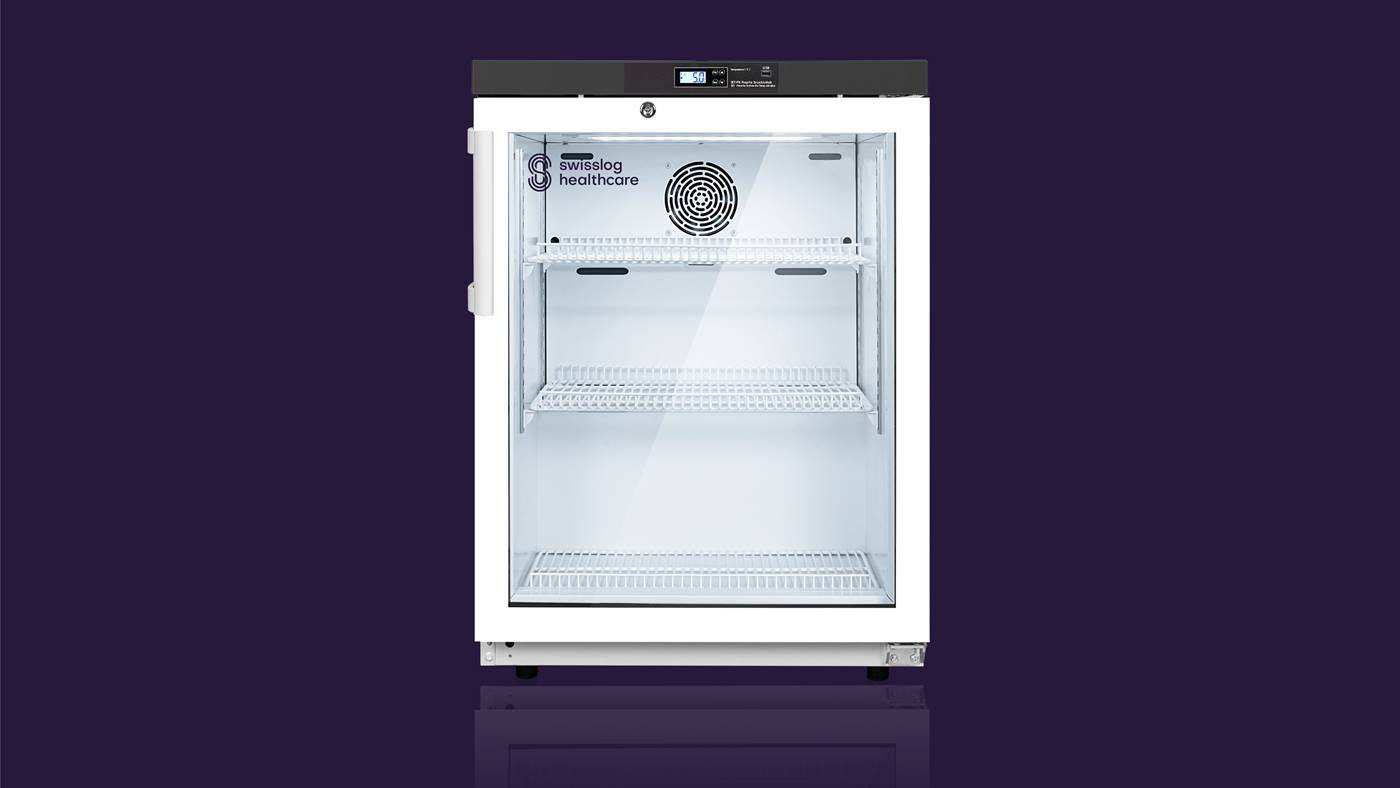

Pharmacy refrigerators provide a reliable solution for storing vaccines, medicines, and other sensitive products within the critical temperature range of 2 °C to 8 °C, meeting the requirements of pharmacies and laboratories in healthcare facilities.
All of them feature micro-channel condensers, known for their ultra-high heat transfer efficiency. These provide faster cooling rates compared to conventional heat exchangers. Even in dusty environments, micro-channel condenser demonstrate superior performance which reduces maintenance intervals.
Pharmacy refrigerators
- are available in different formats and with different load capacities.
- offer precise temperature control due to a microprocessor.
- are equipped with an USB port for data analysis and compliance reporting.
- include a comprehensive alarm system.

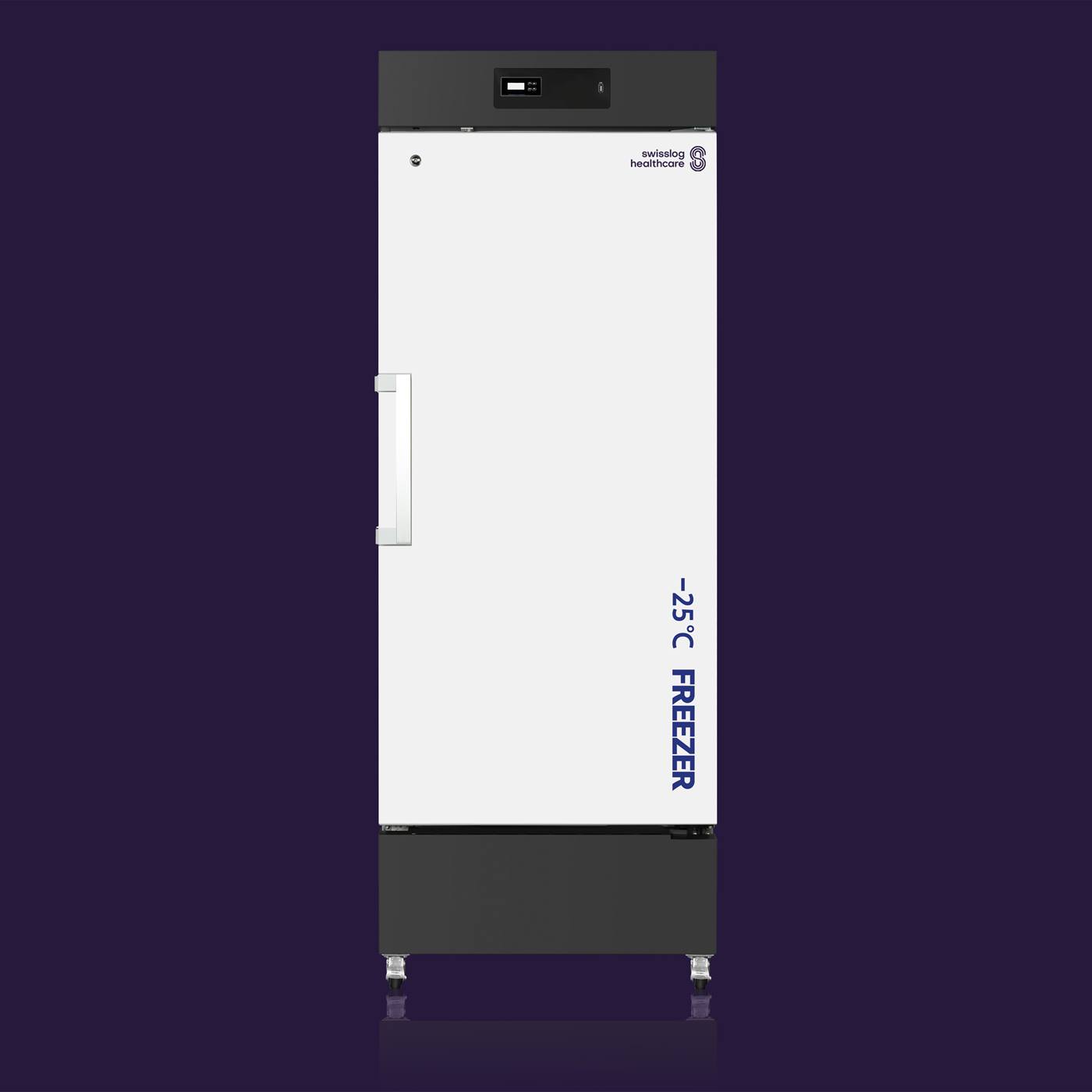

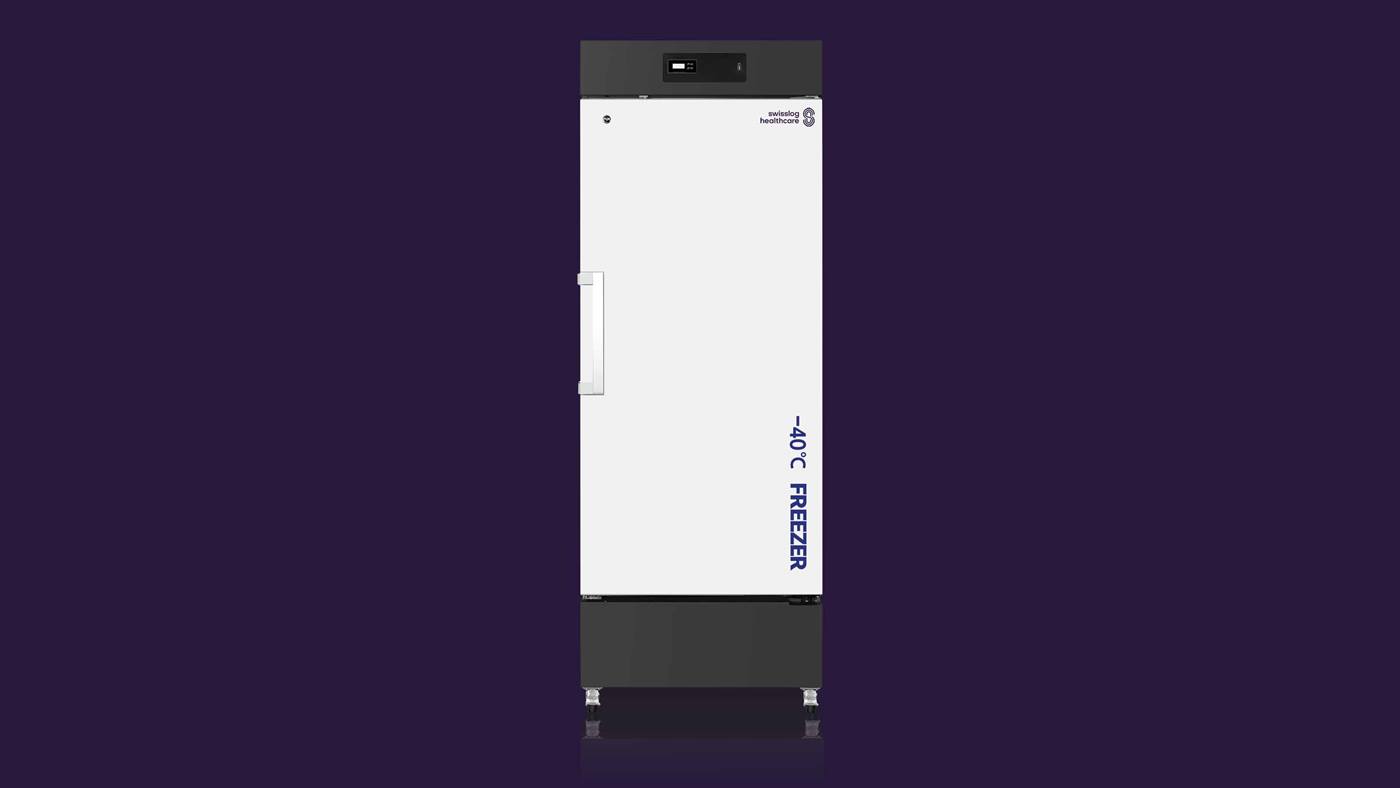

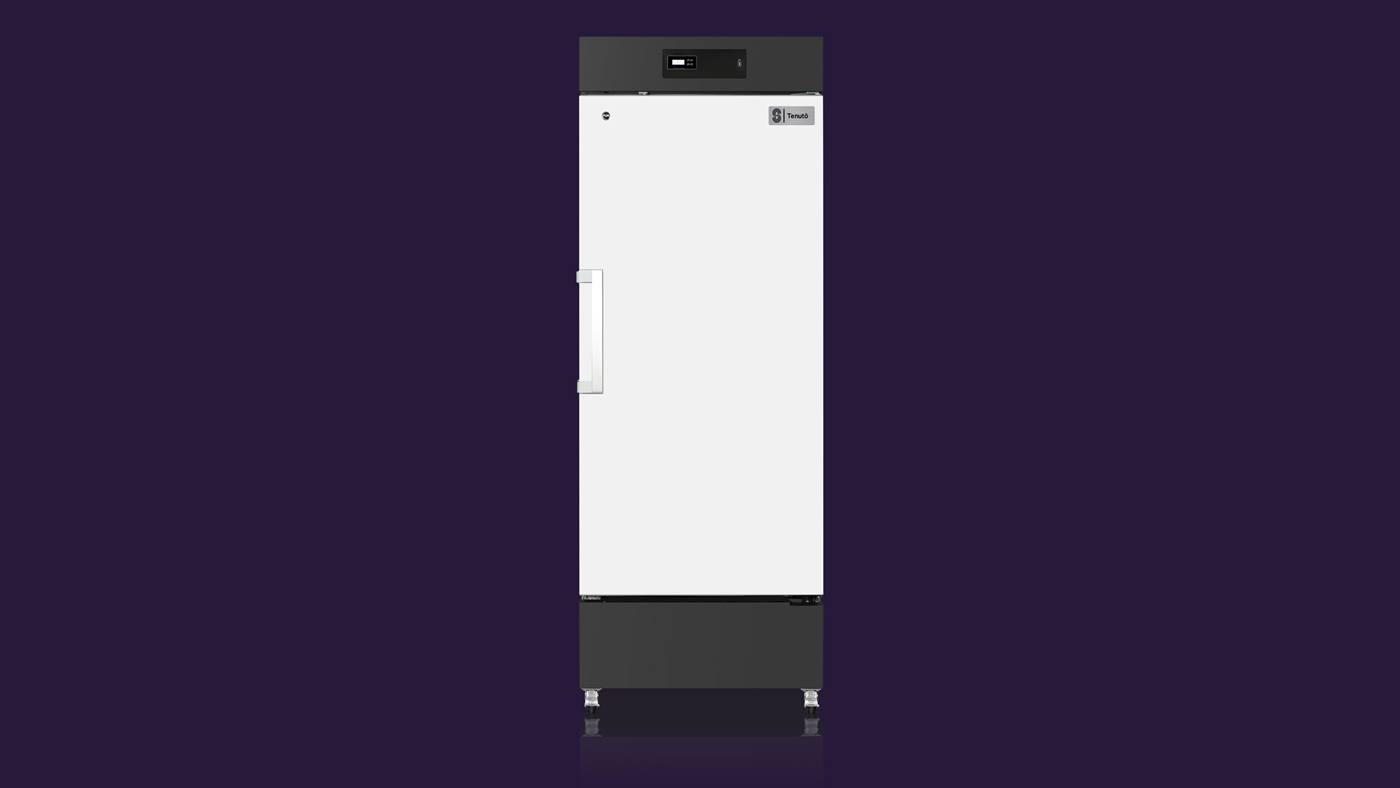

Biomedical freezers are particularly suitable for critical samples such as vaccines, blood products or tissues that need to be stored at temperatures between -25 °C and -40 °C.
These freezers are available in two different sizes, with 7 or 12 compartments and are equipped with the following:
- microprocessor that ensures precise temperature control
- multi-layer silicone door seal, minimizing heat exchange and preserving the inner temperature
- LBA foaming technology and vacuum insulation panel for better insulation
- USB port for data analysis, compliance reporting
- comprehensive alarm system
The biomedical freezers are easy to move thanks to fixed castors with universal wheels. Additionally, a safety lock and easy-open handles offer secure and effortless access.

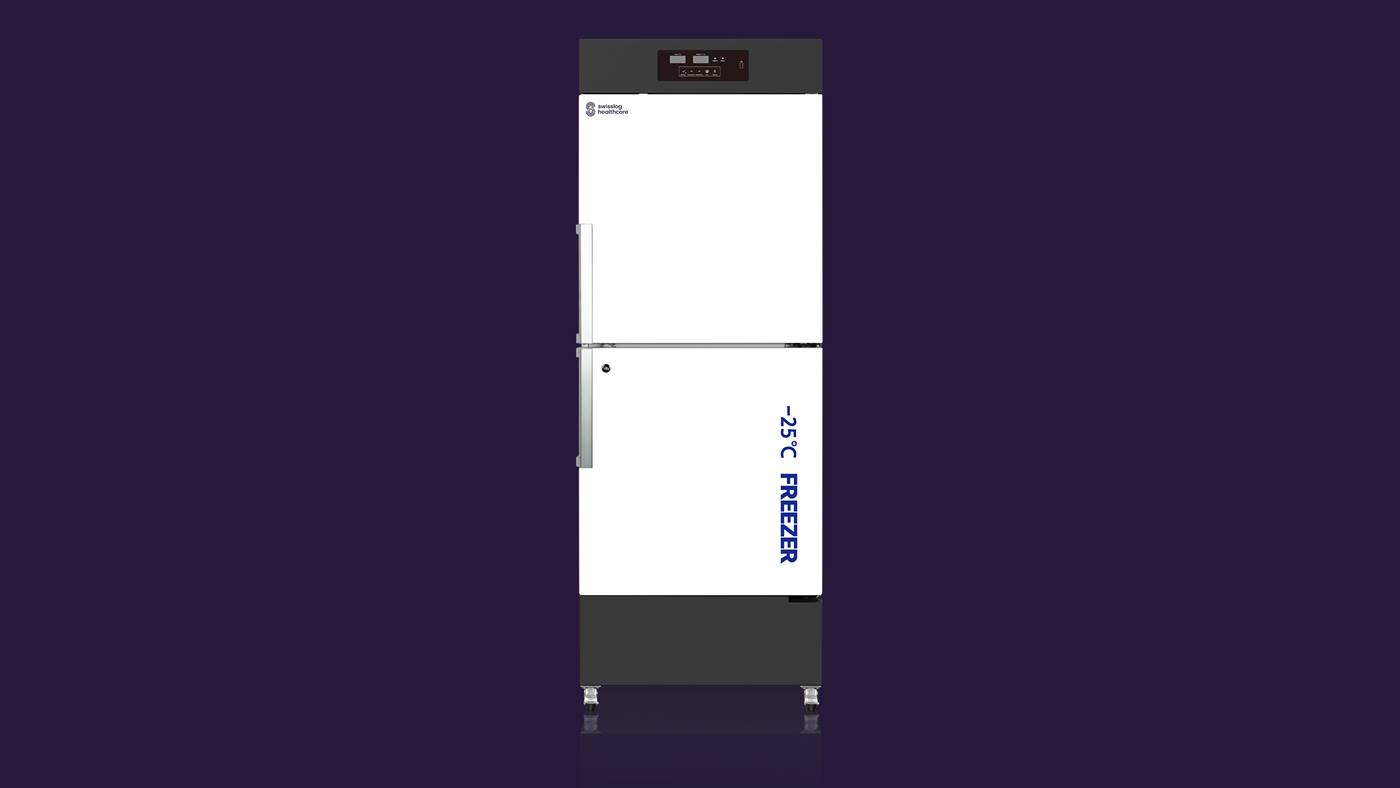

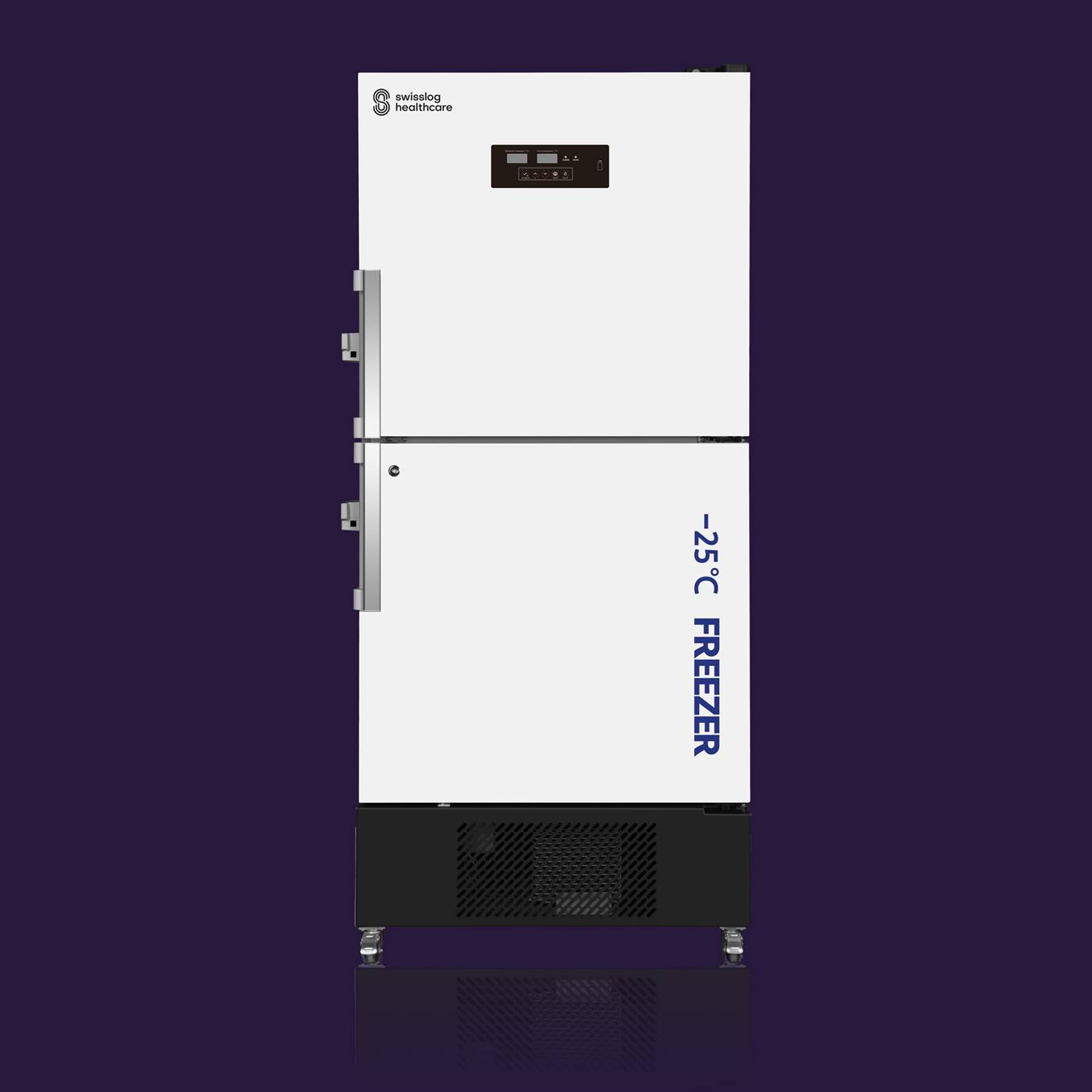

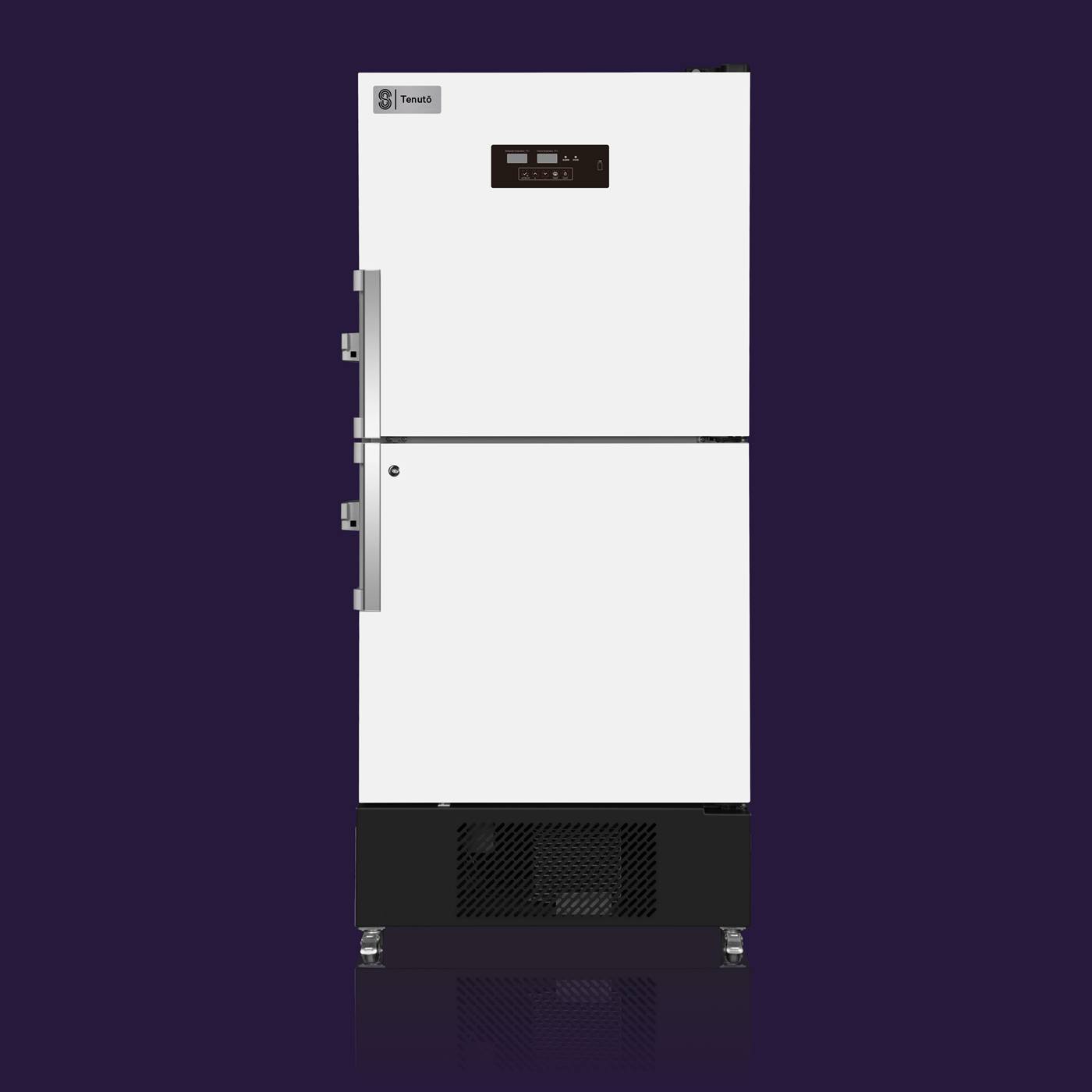

Combined refrigerator and freezer can store clinical goods at two different temperatures in one system. The temperatures of the pharmacy refrigerator can be set to a range of 2-8 degrees. The freezer can be set to temperatures from -25 °C to -10 °C or -40 °C to -20 °C.
The combined refrigerator and freezer are equipped with the following:
- microprocessor that ensures precise temperature control
- multi-layer door seal minimizing heat exchange and preserving the inner temperature
- LBA foaming technology and a vacuum insulation panel for better insulation
- USB port for data analysis, compliance reporting
- comprehensive alarm system
- fixed caster with universal wheel for easy mobility
- safety lock and easy-open handles for secure and effortless access

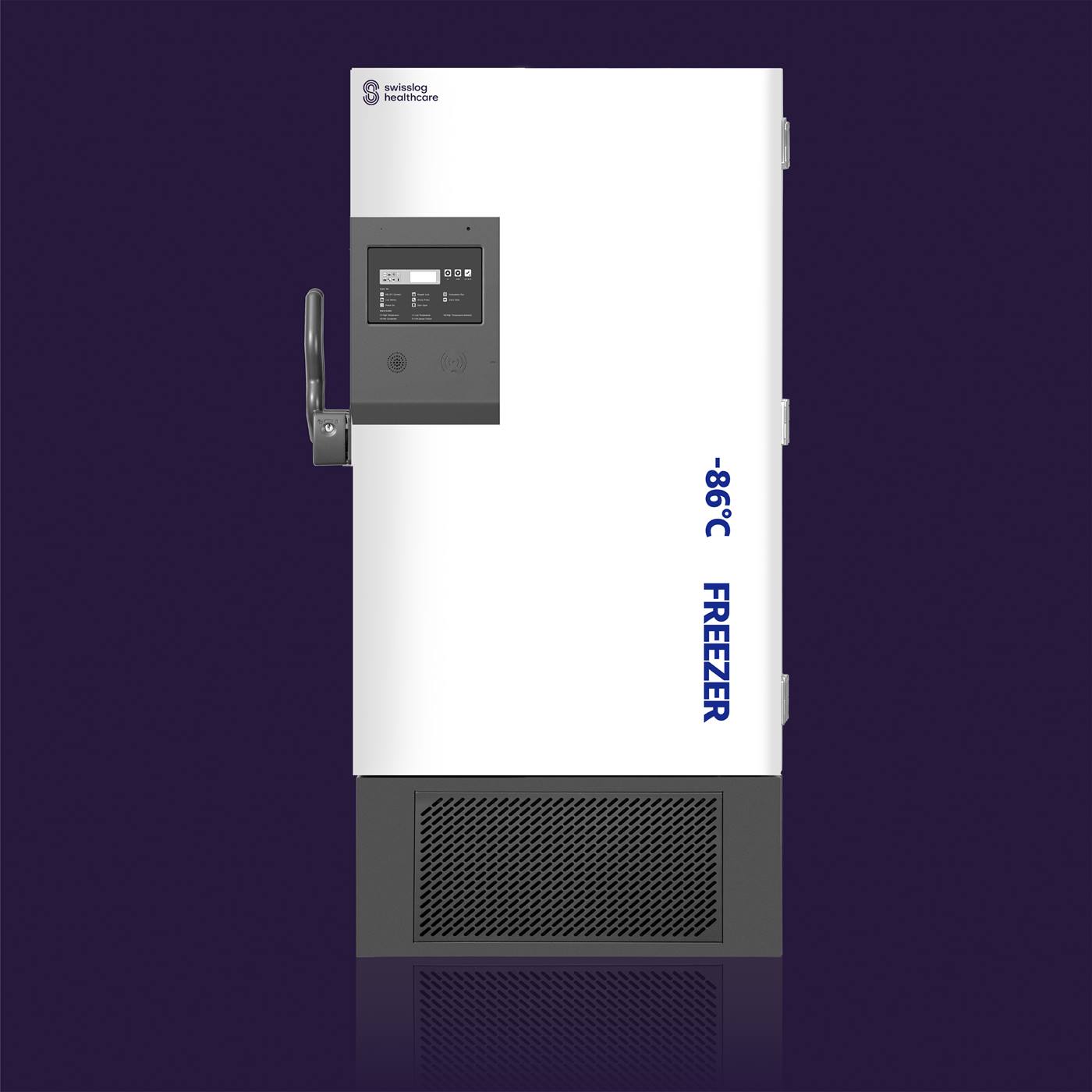

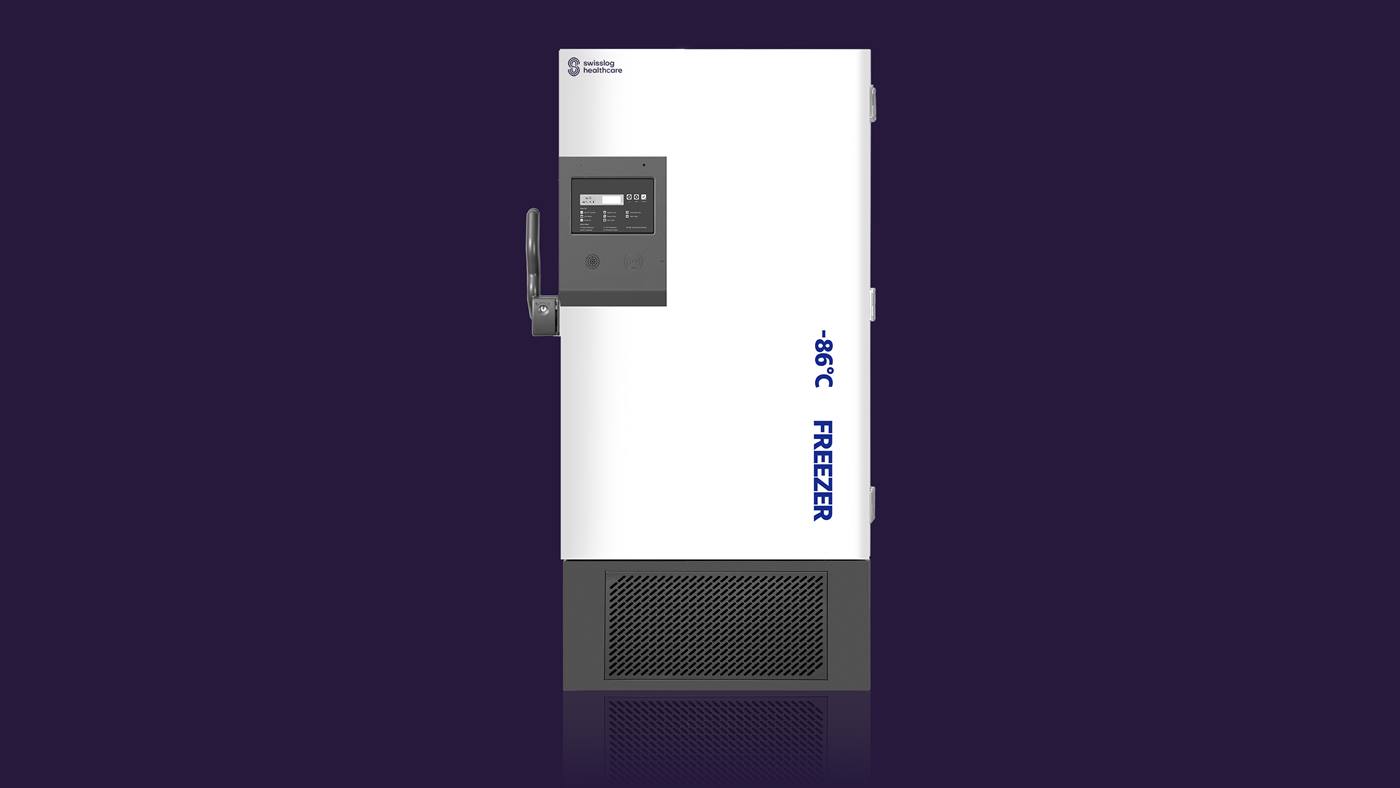

ULT freezers are reaching temperatures as low as -86 °C and provide an ideal cooling solution for the storage and protection of temperature-sensitive samples, vaccines, longitudinal study samples, medical research samples, pharmaceutical products, and clinical trial samples.
The right ULT freezer for your needs:

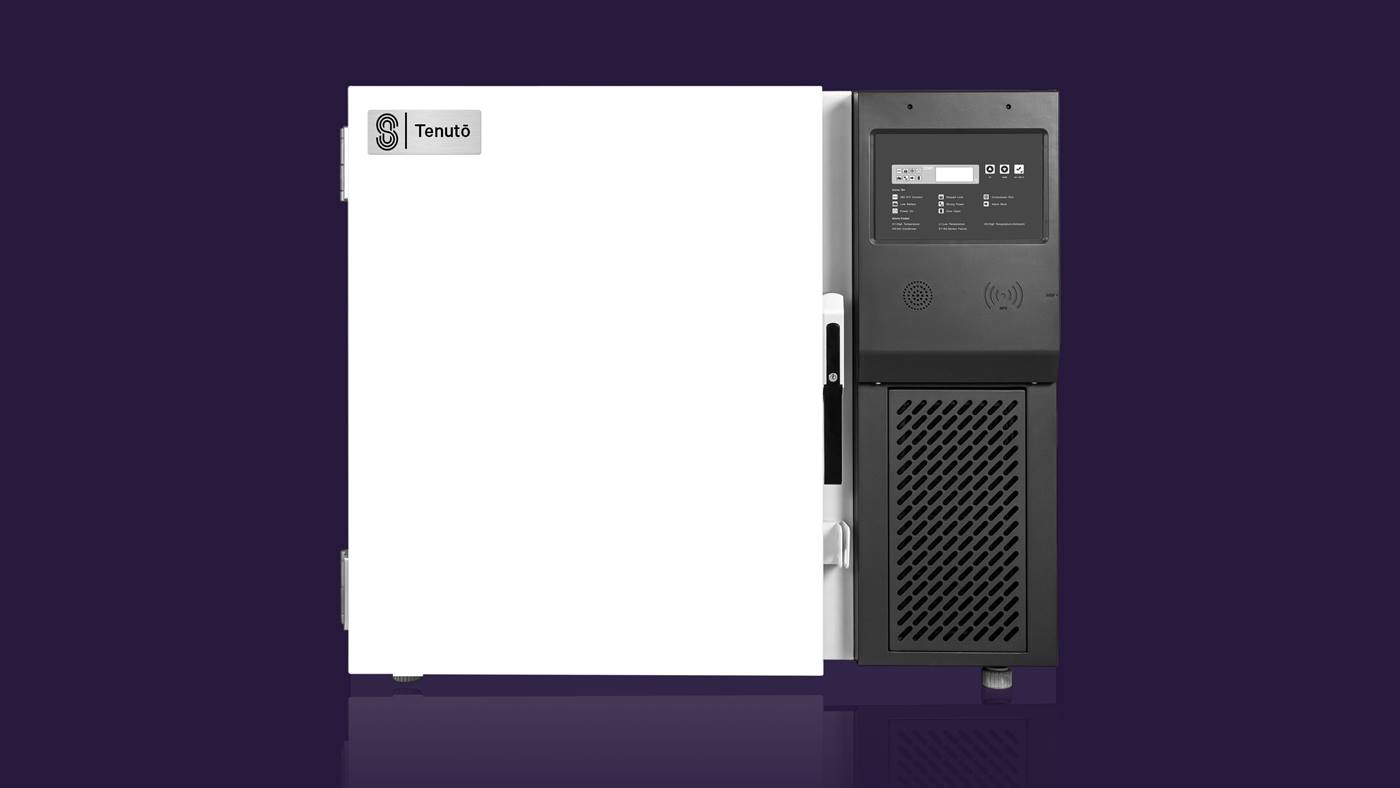

- Under the counter for areas with reduced space
- Lab solution with a slim design
- DualGuard for high-level security storage with two independent compressor systems: If one cooling circuit experiences an unexpected failure, the other can maintain the freezer's temperature uniformly within the -80°C range.
All ULT freezers benefit from:
- Active ECO technology, defaulting to ECO mode for optimal energy efficiency. The compressor performance adapts to loads and temperature fluctuations, minimizing energy usage while maintaining a uniform temperature.
- Patented D-shaped evaporator to enhance heat transfer: The shape of the evaporation pipe section increases contact area to improve overall heat transfer efficiency.
- Vacuum insulation panel (VIP+) with a glass fiber core offers advanced thermal properties for superior insulation and up to 30% more storage capacity compared to conventionally insulated freezers, all within the same footprint.
- Advanced vacuum insulation panel
- LBA foaming
- Multi-layer silicone door seal, minimizing heat exchange and preserving the inner temperature
- USB port for data analysis, compliance reporting
- Comprehensive alarm system
Maintaining medication safety requires high-quality components
Top cooling system and built-in air duct
The powerful top-to-bottom cooling airflow creates an air curtain, preventing external hot air from entering when the door is open which significantly slows temperature rise. This maintains stable cabinet temperatures and limiting interior temperature variation to ±1 °C. This offers superior protection for temperature-sensitive medications and samples.
The built-in air duct and top cooling system ensure optimal storage temperatures throughout the chamber, expanding usable interior space by 10%.
DC turbo fan
The integrated DC turbo runs with less vibration and increased efficiency, leading to quieter operation and enhanced energy savings.
Electric heating glass, low-E glass and multi-layer door seal
Electric heating glass prevents frost buildup, ensuring clear visibility and efficient operation. Low-E glass reduces heat transfer, improving insulation and energy efficiency. Multi-layer silicone gaskets create a tight seal between inner and outer doors, minimizing heat exchange and effectively preserving the inner temperature in the event of a power failure.
All three technologies enhance cooling efficiency and maintain stable interior temperatures for optimal storage conditions.
Smart-inverter compressor
The control system adjusts compressor speeds based on load and fluctuation to optimize operation. This enhances cooling, reduces energy usage, lowers noise, quickens cooling, and maintains interior temperature within a 2°C variation.
LBA foaming technology
The enhanced insulation from fourth-generation foaming agent increases energy efficiency. The optimized foaming layer design enhances space utilization.
